Automatic Bottled Jelly Packaging Machine
The new automatic vertical packaging machine for bottled jelly is a fully independently developed packaging machine for food with jelly type. This machine is widely recognized by vast customers with its outstanding features such as high working efficiency, long working hours, low area occupation and simple operating action.
The new jelly packaging machine is capable to perform actions such as automatic material feeding, packaging , sealing and cutting. The machine is merged with advanced micro computer technology of modern mechanical industry. It has achieved automatic operation with intensive usage of servo motor, photo sensor and electric-magnetic elements. Meanwhile, the micro computer display shows directly and clearly the operation condition of the machine ( parameters such as "Bags in row, Bags counter, Speed of packaging and Length of Bags, etc.). Operators can just simply edit the parameters for different production demand
The bottled jelly packaging machine controls the length of bags with servo motor. The length of bags can be cut with any dimension precisely within machine allowance. The packaging machine applies thermal control module to maintain the temperature accuracy and stability of the sealing models.
Working principle of the new bottled jelly packaging machine is as follows:
The packaging film is formed to a bag by a bagging mode. Bottom of the bag is firstly sealed. Servo motor starts to drag films. At the same moment, side sealing structure works to seal the side of the bag. Next step is to seal the bottom of the bag before the bag continues to move down by the work of feeding structure. When the bag goes to the right preset position, material filling structure starts to feed material into the semi finished bag. Amount of the material is controlled by a spinning pump. After correct amount of material is filled into the bag, the vertical and horizontal sealing structure work together to make the final seal and at the same time, seal the bottom of next bag. A press mode is set to form the bag to certain appearance and the bag with material is cut and drop into the conveyor below. The machine continues next circle of the operation.
2.1 Speed of packaging: 50-60 bags/min
2.2 Weight range: 5-50g
2.3 Regular bag size ( unfolded ): length 120-200mm, width 40-60mm
2.4 Power supply: ~220V, 50Hz
2.5 Total power: 2.5 Kw
2.6 Working air pressure: 0.6-0.8 Mpa
2.7 Air consumption: 0.6 m3/min
2.8 Film feeding motor: 400W, speed ratio: 1:20
2.9 Power of electric thermal tube: 250W*6
2.10 Overall dimension( L*W*H ): 870mm*960mm*2200mm
2.11 Weight of machine in total: 250 kg
3.1 Application: for jelly and liquid material
3.2 Characteristic
3.2.1 Simple structure, high efficiency, long working hours, easy operation, convenient maintenance, automatic feeding, automatic packaging and trimming, low working intensity, lower labor force.
3.2.2 length of bag, speed of packaging and weight is adjustable. No necessity to change parts.
3.2.3 easier to edit speed. can be done directly in human-machine interface.

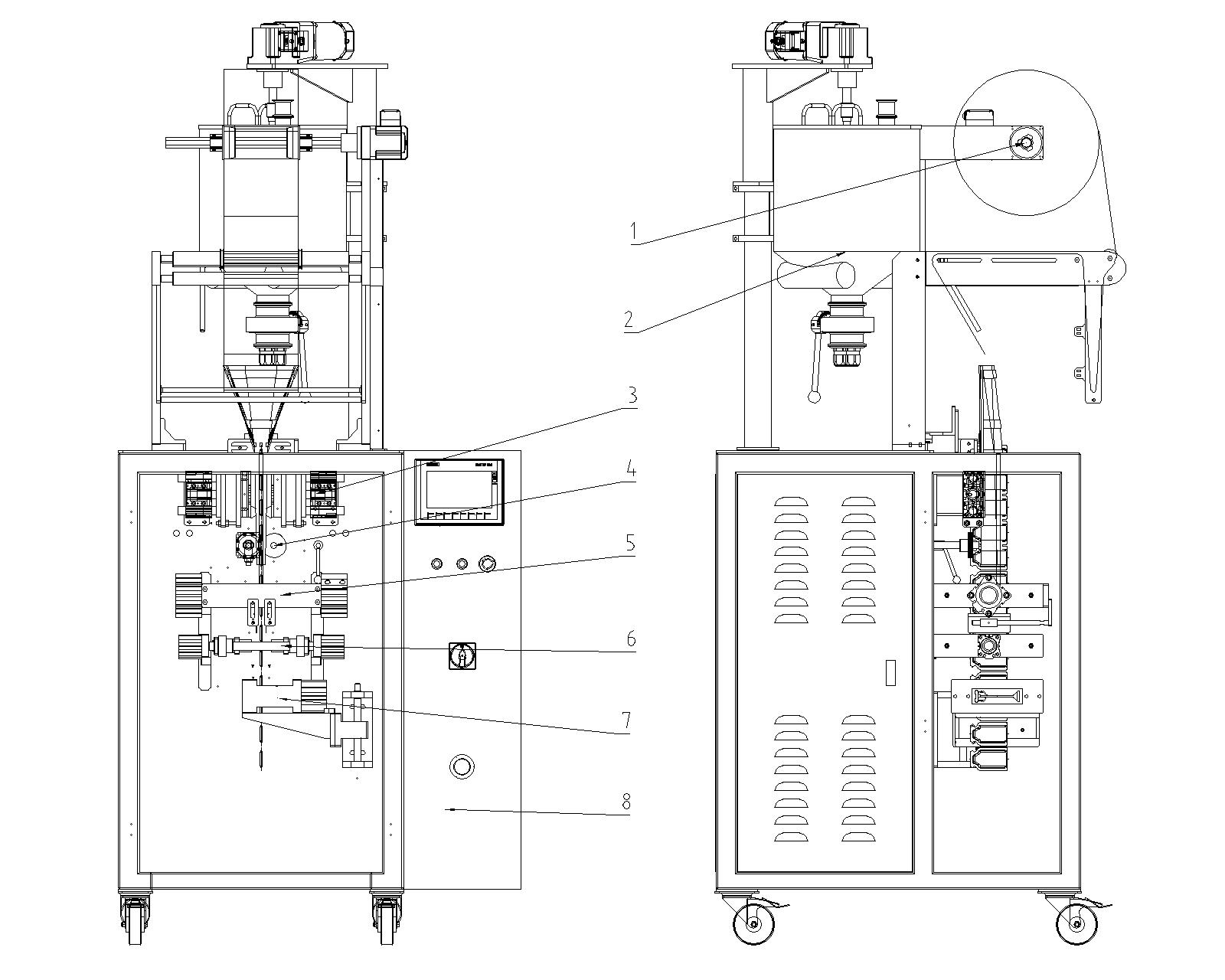

The bottled jelly packaging machine consist of 8 parts:
1. Film feeding structure
2. Material barrel
3. Vertical sealing structure
4. Film dragging structure
5. Upper horizontal sealing structure
6. Lower horizontal sealing structure
7. Form pressing structure
8. Electric cabinet
